Wine Tent Highlight 8M

Home > Products > Product details
Range
Highlight Tents

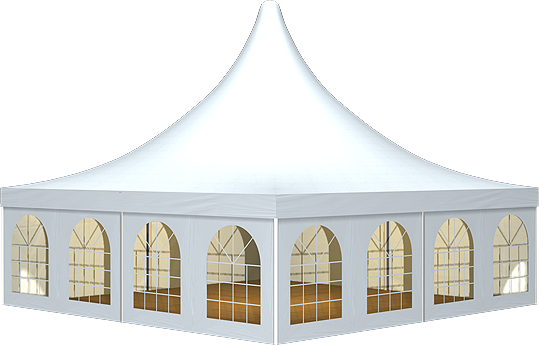

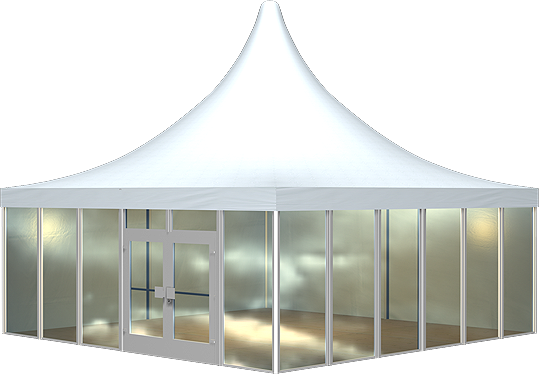

Tent image
Tent2Tent1
Technical data
Clear-span width 800 cm
Side height 240 cm, 300 cm
Ridge height 382 cm, 448 cm
Highest point 622, 682
Roof pitch
20° / 21,2°
Longest component 567 cm
Main profile 130 mm x 70 mm x 3 mm
Eave / corner connection Internal eave insert
Max. allowed wind speed to DIN 80 km/h
Wind Load 0.3 kN/m2
Flooring options Woodenfloor with timber or steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards Compactfloor
Cover R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2
Special design By using compactfloor anchoring can be omitted
Tent top and side view image
Gable-viewTop-view
