Wine Tent Highlight 10M
Range
Highlight Tents

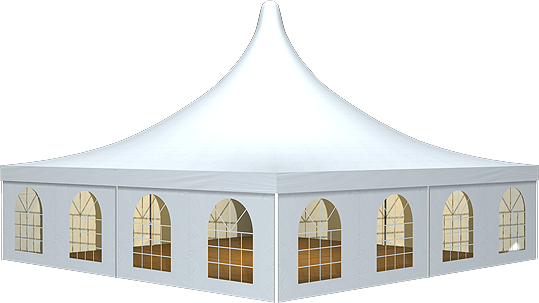

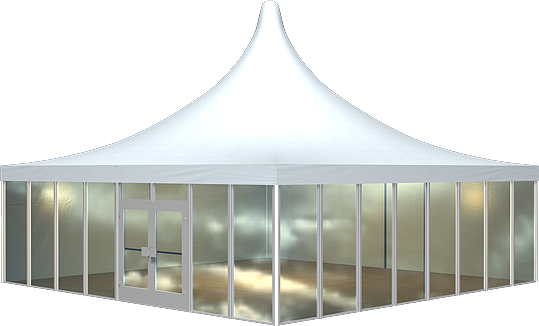

Tent image
Technical data
| Clear-span width | 1000 cm |
| Side height | 240 cm, 300 cm |
| Ridge height | 422 cm, 485 cm |
| Highest point | 659, 719 |
| Roof pitch |
20° / 21,2° |
| Longest component | 714 cm |
| Main profile | 130 mm x 70 mm x 3 mm |
| Eave / corner connection | Internal eave insert |
| Max. allowed wind speed to DIN | 80 km/h |
| Wind Load | 0.3 kN/m2 |
| Flooring options | Woodenfloor with timber or steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards Compactfloor |
| Cover | R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2 |
| Special design | By using compactfloor anchoring can be omitted |

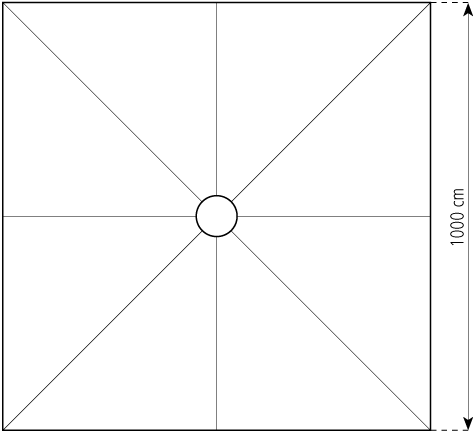

Tent top and side view image
