Storage Tent S75-Alu 7,5M

Home > Products > Product details
Range
Storage Tents

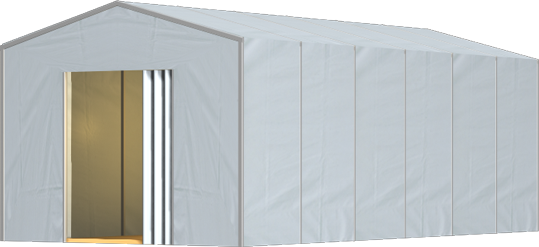

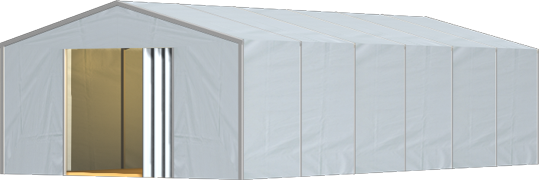

Tent image
Tent2Tent1Tent3
Technical data
Clear-span width 750 cm
Side height 350 cm, 440cm, 500cm
Ridge height 450 cm, 540cm, 610cm
Roof pitch
15°
Bay distance 250 cm
Gable uprights 2 gable uprights (per end)
Longest component 428 cm, 482cm, 551cm
Minimum tent length 500 cm, 750cm
Maximum tent length No limit
Main profile 130 mm x 88 mm x 3 mm, 170 mm x 88 mm x 3 mm
Door sizes (PVC door panels) Side wall 220 cm / 450 cm x 300 cm Gable end 310 cm x 370 cm, Side wall 220 cm / 450 cm x 390 cm Gable end 310 cm x 430 cm, Side wall 220 cm / 450 cm x 450 cm Gable end 310 cm x 430 cm
Eave / corner connection Internal eave insert
Max. allowed wind speed to DIN 80 km/h, 100 km/h
Wind Load 0.3 kN/m2, 0.5 kN/m2
Snow load 0.25 kN/m2
Cover R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2
Special design Also available in fold-up version Sliding doors, rolling doors or service entrances Trapezoidal metal sheets Snow load 0.25 kN/m2: Movable system on rollers

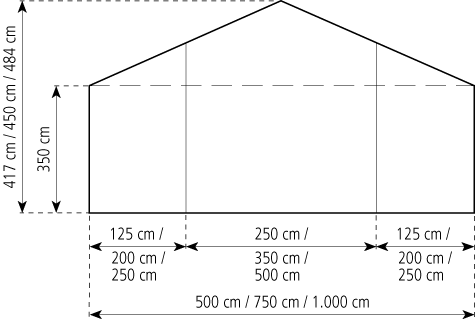

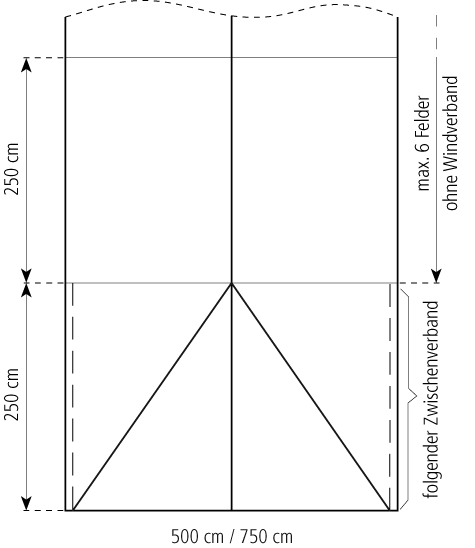

Tent top and side view image
Gable-viewTop-view
