Storage Tent S75-Alu 20M
Range
Storage Tents

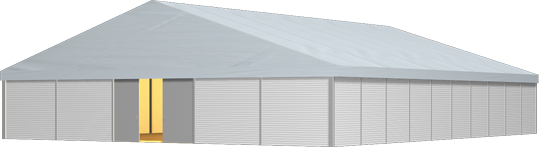

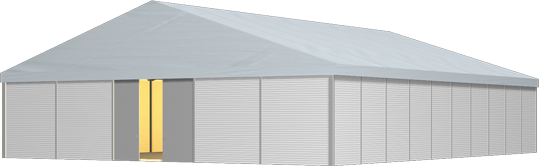

Tent image
Technical data
| Clear-span width | 2000 cm |
| Side height | 350 cm, 440 cm |
| Ridge height | 618 cm, 720 cm |
| Roof pitch |
15° |
| Bay distance | 250 cm |
| Gable uprights | 4 gable uprights (per end) |
| Longest component | 1044 cm, 1046 cm |
| Minimum tent length | 1500 cm |
| Maximum tent length | No limit |
| Main profile | 170 mm x 88 mm x 3 mm, 220 mm x 100 mm x 4 mm |
| Door sizes (PVC door panels) | Side wall 220 cm x 300 cm Gable end 450 cm x 390 cm, Side wall 220 cm x 390 cm Gable end 450 cm x 430 cm |
| Eave / corner connection | Internal eave insert |
| Max. allowed wind speed to DIN | 100 km/h |
| Wind Load | 0.5 kN/m2 |
| Snow load | 0.25 kN/m2, 0.75 kN/m2 |
| Cover | R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2 |
| Special design | Sliding doors, rolling doors or service entrances Trapezoidal metal sheets |

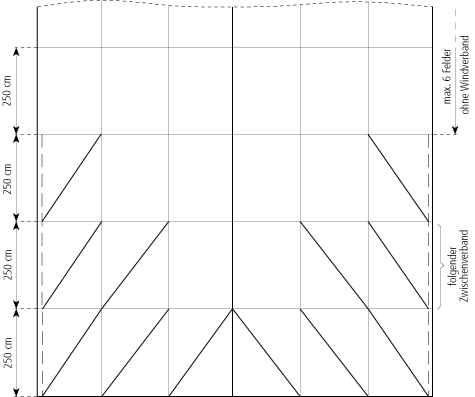

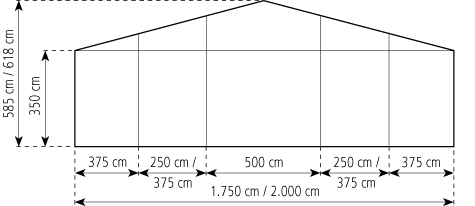

Tent top and side view image
