Storage Tent S75-Alu 15M

Home > Products > Product details
Range
Storage Tents

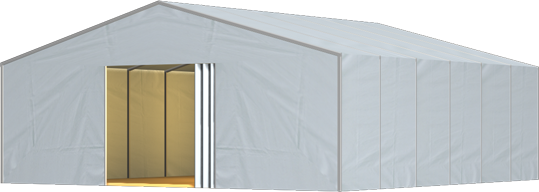

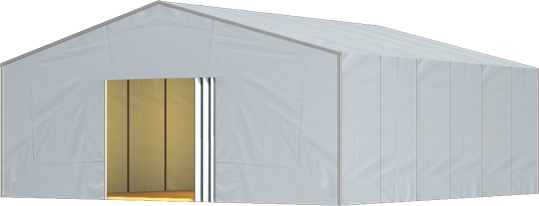

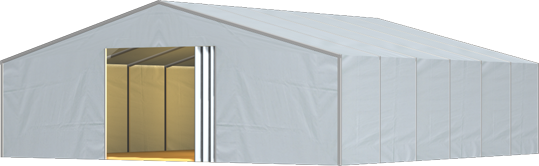

Tent image
Tent3Tent1Tent2
Technical data
Clear-span width 1500 cm
Side height 350 cm, 440 cm, 500 cm
Ridge height 551 cm, 641 cm, 710 cm
Roof pitch
15°
Bay distance 250 cm
Gable uprights 2 gable uprights (per end)
Longest component 785 cm
Minimum tent length 1000 cm, 750 cm
Maximum tent length No limit
Main profile 170 mm x 88 mm x 3 mm
Door sizes (PVC door panels) Profile 170 x 88 x 3 mm: Side wall 220 cm / 450 cm x 300 cm Gable end 450 cm x 390 cm Profile 220 x 100 x 3 mm: Side wall 220 cm x 300 cm Gable end 450 cm x 390 cm, Side wall 220 cm / 450 cm x 450 cm Gable end 450 cm x 430 cm
Eave / corner connection Internal eave insert
Max. allowed wind speed to DIN 100 km/h
Wind Load 0.5 kN/m2
Snow load 0.25 kN/m2
Cover R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2
Special design Sliding doors, rolling doors or service entrances Trapezoidal metal sheets Snow load 0.25 kN/m2: Movable system on rollers, Sliding doors, rolling doors or service entrances Trapezoidal metal sheets

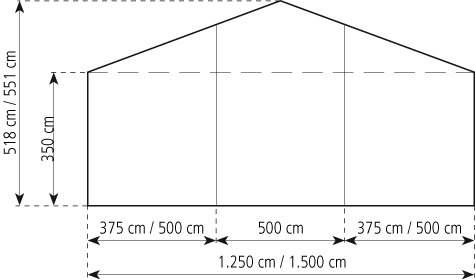

Tent top and side view image
Gable-viewTop-view
