Storage Tent H-Line 30M

Home > Products > Product details
Range
Storage Tents

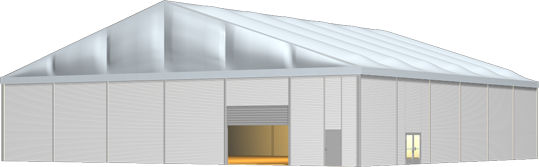

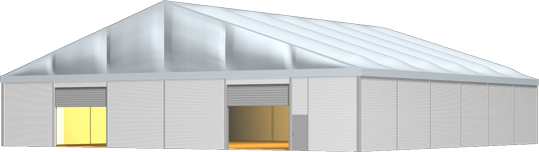

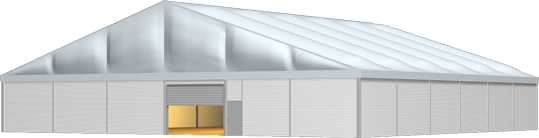

Tent image
Tent2Tent3Tent1
Technical data
Clear-span width 3000 cm
Side height 420cm, 520cm, 620 cm
Ridge height 919cm, 9019cm, 1119 cm
Roof pitch
18°
Bay distance 500 cm
Gable uprights 5 gable uprights (per end)
Longest component 1075 cm
Minimum tent length 3000 cm
Maximum tent length No limit
Main profile 334 mm x 122 mm x 8/4.5 mm
Eave / corner connection Internal eave insert
Max. allowed wind speed to DIN 100 km/h
Wind Load 0.5 kN/m2
Snow load 0.75 kN/m2
Cover R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2, or inflated textile iso-roof
Special design Portal beams can be used in place of cross struts
Trapezoidal metal sheets Strip-galvanized, exterior color coating RAL 9002 (grey-white), protective paint coating inside iso-sandwich elements

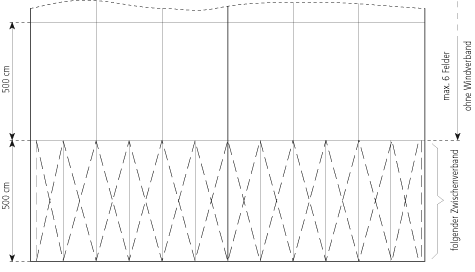

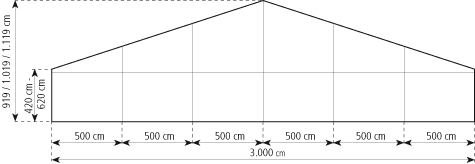

Tent top and side view image
Gable-viewTop-view
