Special Tent Polygon tent 30M

Home > Products > Product details
Range
Polygon Tents

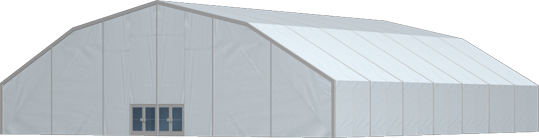

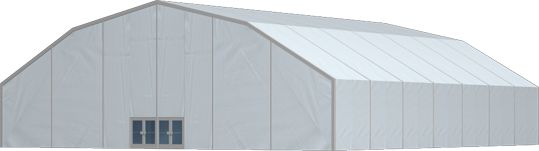

Tent image
Tent2Tent1
Technical data
Clear-span width 3000 cm
Side height 400 cm, 500cm
Ridge height 1050 cm, 1097cm
Bay distance 500 cm
Gable uprights 5 gable uprights (per end)
Longest component 856cm
Minimum tent length 2000 cm
Maximum tent length No limit
Main profile 285 mm x 124 mm x 7.5/5.2 mm
Eave / corner connection Internal eave insert
Max. allowed wind speed to DIN 130 km/h
Wind Load 0.8 kN/m2
Flooring options Woodenfloor with timber and steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards
Cover R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2

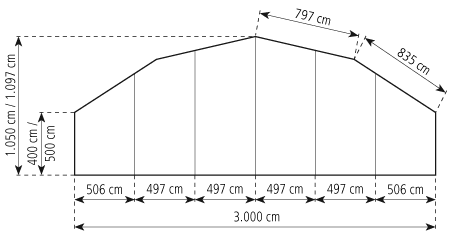

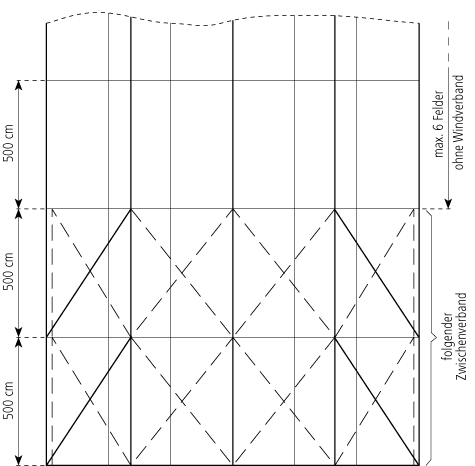

Tent top and side view image
Gable-viewTop-view
