Special Tent Curve tent Light 4M

Home > Products > Product details
Range
Curve Tents

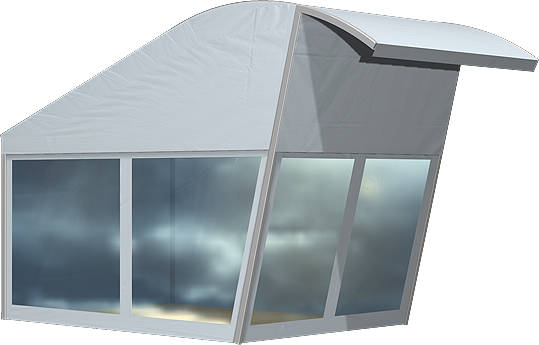

Tent image
Tent
Technical data
Clear-span width 400 cm
Side height 229 cm
Ridge height 373 cm
Roof pitch
25°
Bay distance 300 cm
Longest component 432 cm
Minimum tent length 300 cm
Maximum tent length No limit
Main profile 81 mm x 48 mm x 3 mm (optional 94 mm x 48 mm x 3 mm )
Eave / corner connection Internal eave insert
Max. allowed wind speed to DIN 80 km/h
Wind Load 0.3 kN/m2
Flooring options Woodenfloor with timber or steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards Compactfloor
Cover R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2
Special design Portal beams can be used in place of cross struts By using compactfloor anchoring can be omitted
Tent top and side view image

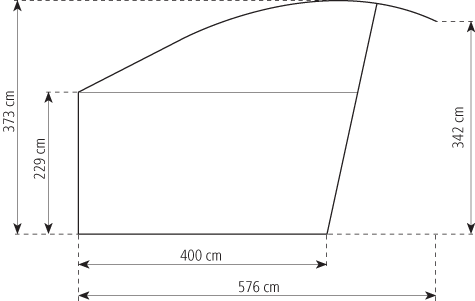

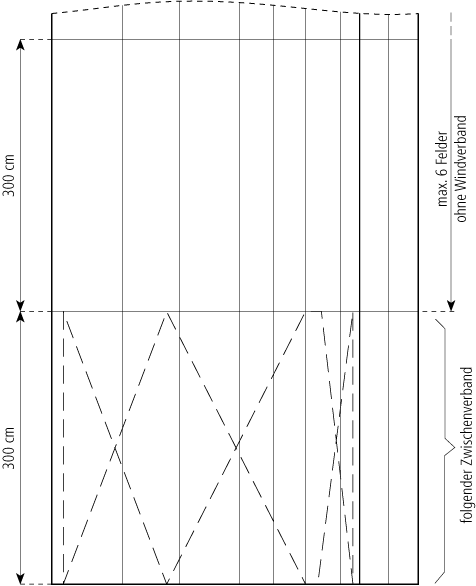

Gable-viewTop-view
