Special Tent Bi-level tent P5 10M

Home > Products > Product details
Range
Double deck tents

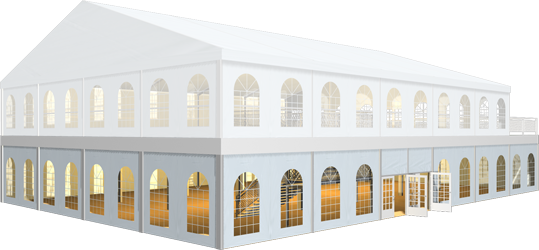

Tent image
Tent
Technical data
Clear-span width 1000-3000 cm
Side height 415 cm
Bay distance 500 cm
Main profile 285 mm x 124 mm x 5.2 mm
Working load on platform 500 kg/m2
Max. allowed wind speed to DIN 100 km/h
Wind Load 0.5 kN/m2
Extension / lean-to options Can be extended to any length in certain variants
Flooring options Woodenfloor with timber or steel sub-construction Heavy-flooringsystem without anchoring Aluminium cassette floor with full aluminiumboards
Cover R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2
Note The types of tent which are erected on the bi-level tent must be viewed separately
Possible utilization 2nd level can be completely or partially covered, or used as a terrace
Tent top and side view image

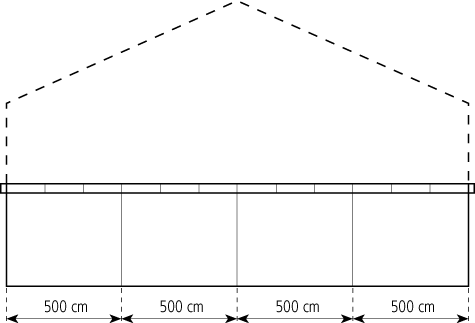

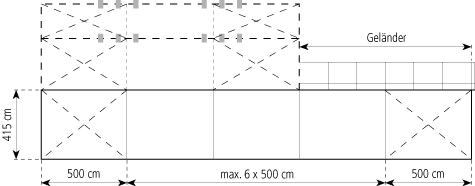

Gable-viewTop-view
