Party Tent Octagonal 10M

Home > Products > Product details
Range
Multi-sided Tents

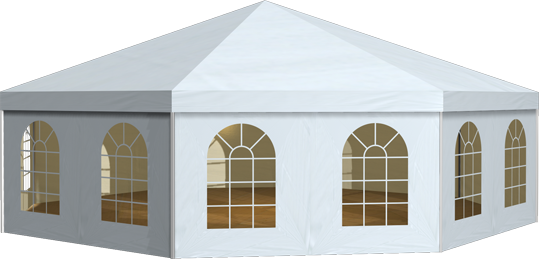

Tent image
Tent
Technical data
Clear-span width 1000 cm
Side height 229 cm
Side length 382 cm
Ridge height pavilion 411 cm
Ridge height membrane 561 cm
Roof pitch
20°
Longest component 540 cm
Main profile 81 mm x 48 mm x 3 mm (optional 94 mm x 48 mm x 3 mm )
Eave / corner connection Internal eave insert
Covered area 70.7 m2
Max. allowed wind speed to DIN 80 km/h
Wind Load 0.3 kN/m2
Extension / lean-to options Can also be arranged as a pavilion roof with intermediate bays (see party tent 1000/229/411)
Flooring options Woodenfloor with steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards Compactfloor
Cover R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2
Special design By using compactfloor anchoring can be omitted
Tent top and side view image

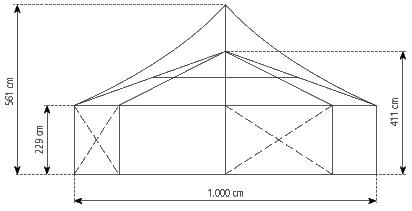

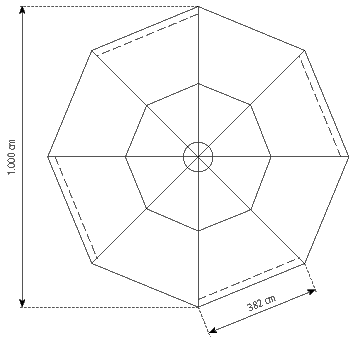

Gable-viewTop-view
