Party Tent Mega 8M Uno

Home > Products > Product details
Range
Mega Tents

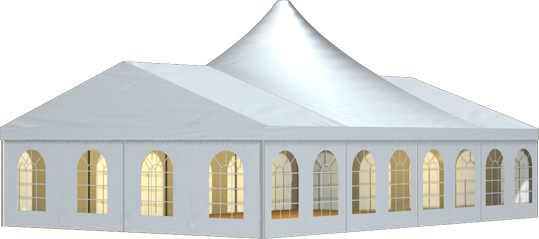

Tent image
Tent
Technical data
Clear-span width 800 cm
Side height 229 cm
Ridge height 374 cm
Highest point 524 cm
Roof pitch
20°
Bay distance 300 cm
Gable uprights 1 gable upright (per end)
Longest component 430 cm
Minimum tent length 1200 cm
Maximum tent length No limit
Main profile 81 mm x 48 mm x 3 mm (optional 94 mm x 48 mm x 3 mm )
Eave / corner connection Internal eave insert
Max. allowed wind speed to DIN 80 km/h
Wind Load 0.3 kN/m2
Extension / lean-to options 1/2 hexagonal at gable end With all Mega tents Extension
Flooring options Woodenfloor with timber or steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards Compactfloor
Cover R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2
Note All Mega variations fit 6m and 8m standard party tents By using compactfloor anchoring can be omitted
Tent top and side view image

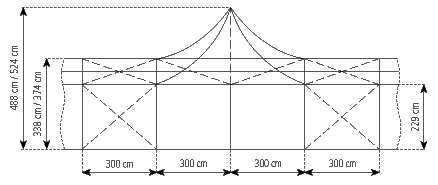

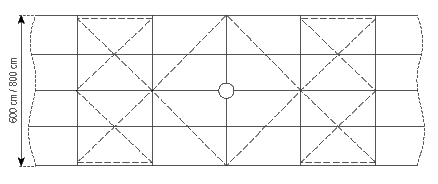

Gable-viewTop-view
