Party Tent Hexagonal Holiday 4M

Home > Products > Product details
Range
Multi-sided Tents

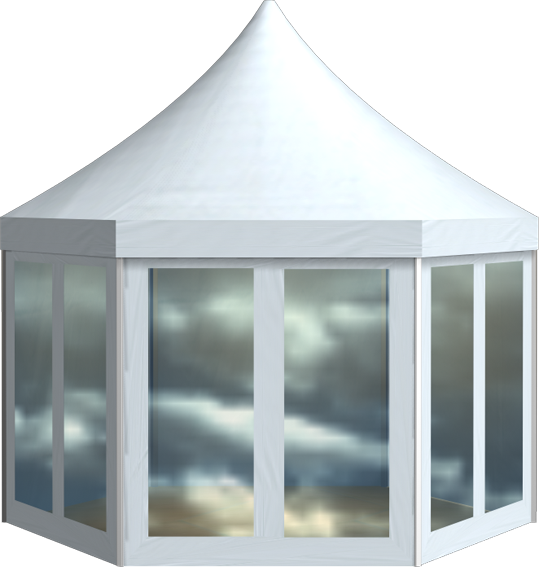

Tent image
Tent
Technical data
Clear-span width 400 cm
Side height 230 cm
Side length 200 cm
Ridge height pavilion 295 cm
Ridge height membrane 385 cm
Roof pitch
18°
Longest component 296 cm
Main profile 110 mm x 68 mm x 3 mm
Eave / corner connection Internal eave insert
Covered area 10.4 m2
Max. allowed wind speed to DIN 80 km/h
Wind Load 0.3 kN/m2
Extension / lean-to options Can also be arranged as a pavilion roof with intermediate bays (see party tents Holiday 0400/230/295 and 0604/230/328)
Flooring options Woodenfloor with steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards Compactfloor
Cover R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2
Special design By using compactfloor anchoring can be omitted

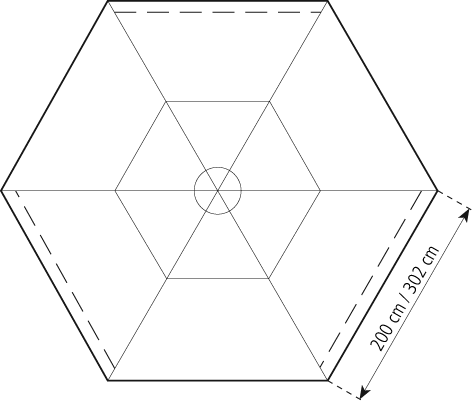

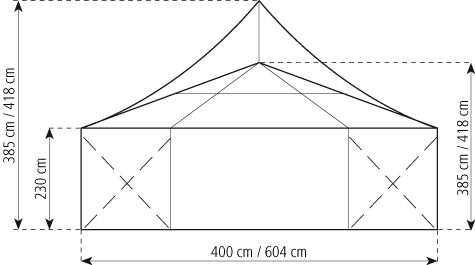

Tent top and side view image
Gable-viewTop-view
