Party Tent Hexagonal fiesta 10M

Home > Products > Product details
Range
Multi-sided Tents

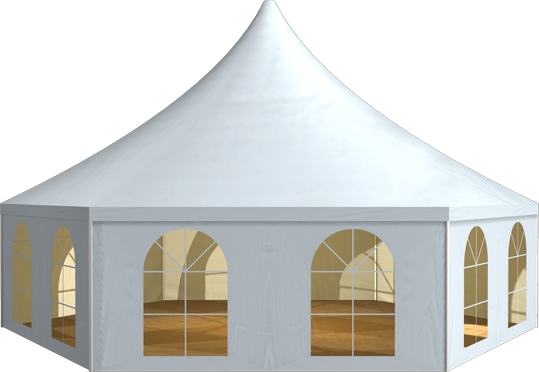

Tent image
Tent
Technical data
Clear-span width 1000 cm
Side height 225 cm
Side length 500 cm
Ridge height pavilion 387 cm
Ridge height membrane 604 cm
Roof pitch
18°
Longest component 546 cm
Main profile 94 mm x 46 mm x 2/4 mm
Eave / corner connection Internal eave insert
Covered area 65 m2
Max. allowed wind speed to DIN 80 km/h
Wind Load 0.3 kN/m2
Extension / lean-to options Can also be arranged as a pavilion roof with intermediate bays (see party tents Fiesta 0588/225/321, 0800/225/355 and 1000/225/387)
Flooring options Woodenfloor with steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards Compactfloor
Cover R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2
Special design By using compactfloor anchoring can be omitted

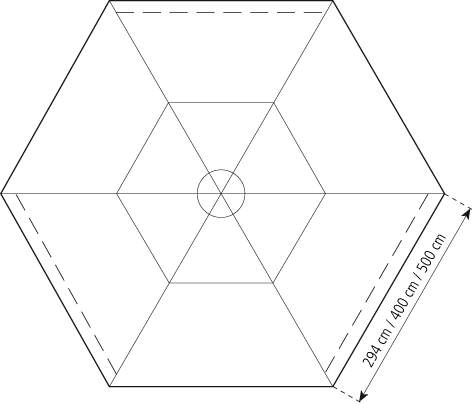

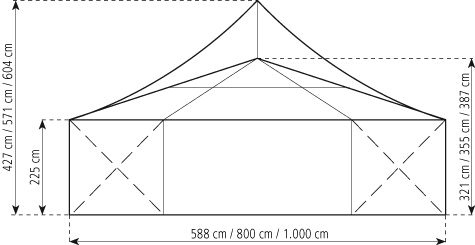

Tent top and side view image
Gable-viewTop-view
