Party Tent Bodega? SP 4M/5M

Home > Products > Product details
Range
Curve Tents

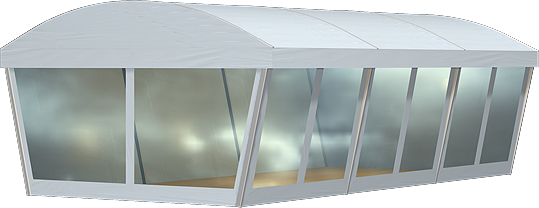

Tent image
Tent
Technical data
Clear-span width 400-500 cm
Side height 229 cm
Ridge height 306 cm
Roof pitch
25°
Bay distance 300 cm
Longest component 479 cm
Minimum tent length 600 cm
Maximum tent length No limit
Main profile 81 mm x 48 mm x 3 mm (optional 94 mm x 48 mm x 3 mm )
Eave / corner connection Internal eave insert
Max. allowed wind speed to DIN 80 km/h
Wind Load 0.3 kN/m2
Flooring options Woodenfloor with timber or steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards Compactfloor
Cover R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2
Special design By using compactfloor or woodenfloor with steel sub-construction and weights anchoring can be omitted Portal beams can be used in place of cross struts
Tent top and side view image

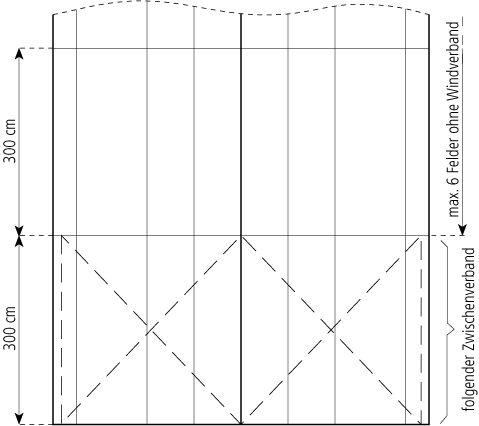

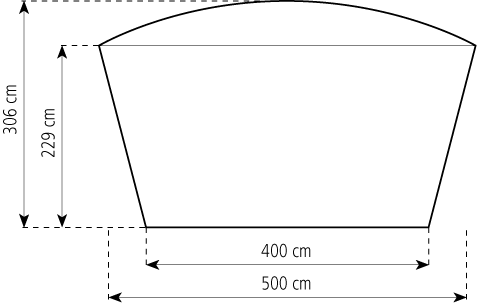

Gable-viewTop-view
