Big Tent Solution 10M

Home > Products > Product details
Range
Solution Tents

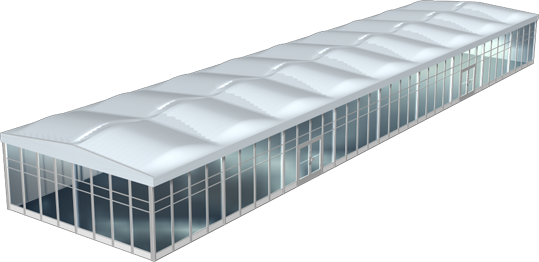

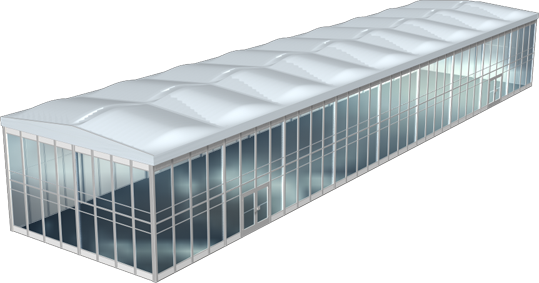

Tent image
Tent2Tent1
Technical data
Clear-span width 1000 cm
Side height 400 cm, 600 cm
Ridge height 448 cm, 648 cm
Roof pitch
Bay distance 500 cm
Gable uprights 1 gable uprights (per end)
Longest component 552 cm
Minimum tent length 1000 cm
Maximum tent length No limit
Main profile 250 mm x 120 mm x 5/4 mm
Eave / corner connection Clevic-plate connection, Clevic-plate connection with corner strut
Max. allowed wind speed to DIN 100 km/h
Wind Load 0.5 kN/m2
Extension / lean-to options none
Flooring options Woodenfloor with timber and steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards
Cover R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2, inflated textile, R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2, inflated textile iso-roof

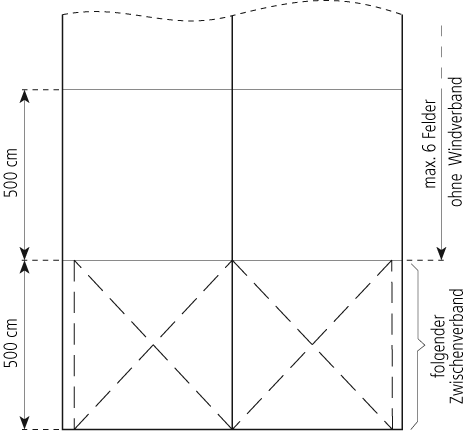

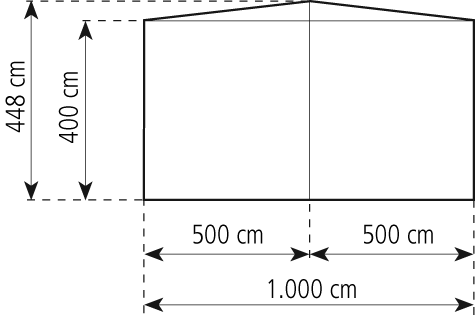

Tent top and side view image
Gable-viewTop-view
