Big Tent 50M

Home > Products > Product details
Range
Big Tents

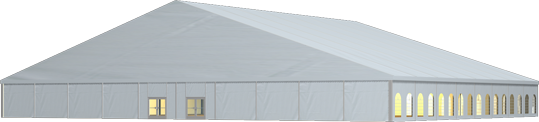

Tent image
Tent
Technical data
Clear-span width 5000 cm
Side height 385 cm
Ridge height 1200 cm
Roof pitch
18°
Bay distance 500 cm
Gable uprights 9 gable uprights (per end)
Longest component 1174 cm
Minimum tent length 4000 cm
Maximum tent length No limit
Main profile 350 mm x 124 mm x 10/6 mm
Eave / corner connection Clevic-plate connection with corner and ridge strut
Max. allowed wind speed to DIN 130 km/h
Wind Load 0.8 kN/m2
Extension / lean-to options none
Flooring options Woodenfloor with timber and steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards
Cover R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2
Tent top and side view image

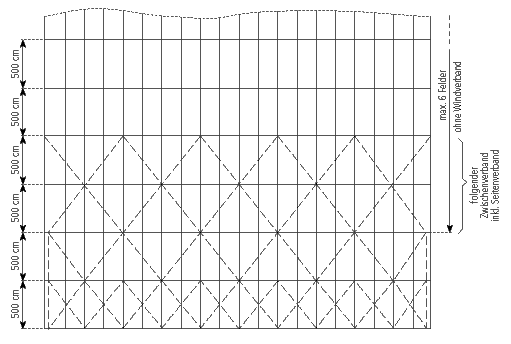

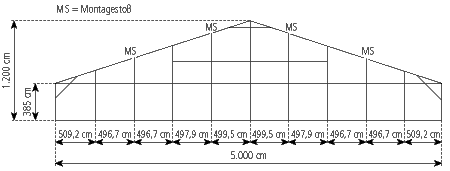

Gable-viewTop-view
