Big Tent 20M HP

Home > Products > Product details
Range
Big Tents

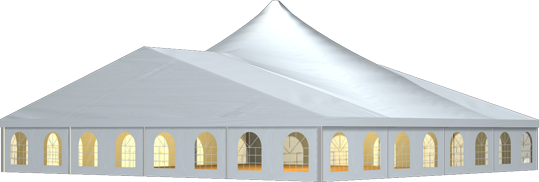

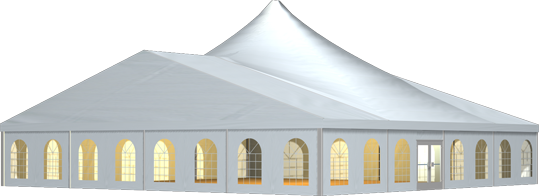

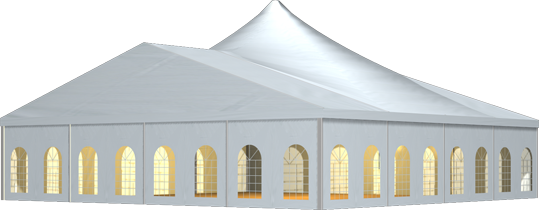

Tent image
Tent2Tent1Tent3
Technical data
Clear-span width 2000 cm
Side height 240 cm, 300 cm, 400 cm
Ridge height 565 cm, 625 cm, 725 cm
Highest point 860 cm, 920 cm, 1020 cm
Roof pitch
18°
Bay distance 500 cm
Gable uprights 3 gable uprights (per end)
Longest component 1070 cm
Minimum tent length 4000 cm
Maximum tent length No limit
Main profile 220 mm x 100 mm x 3 mm, 220 mm x 100 mm x 4 mm
Eave / corner connection Slide connection with ridge strut, Twin-pin connection with corner and ridge strut
Max. allowed wind speed to DIN 100 km/h
Wind Load 0.5 kN/m2
Variations 1/2 octagonal at gable end
Extension / lean-to options 1/2 octagonal at gable end
Flooring options Woodenfloor with timber and steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards
Cover R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2
Special design Portal beams can be used in place of cross struts

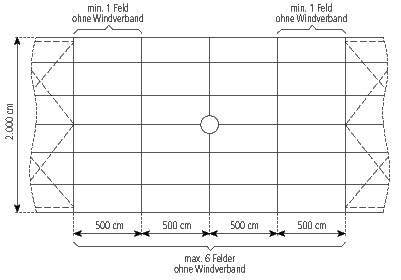

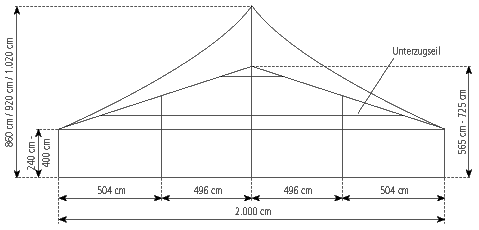

Tent top and side view image
Gable-viewTop-view
