Big Tent 20M
Range
Big Tents

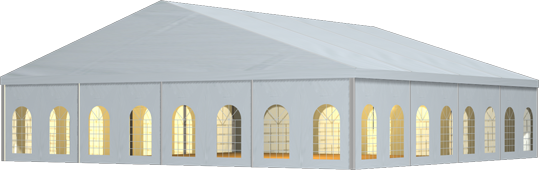

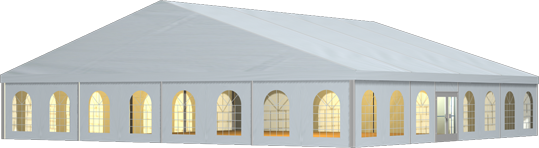

Tent image
Technical data
| Clear-span width | 2000 cm |
| Side height | 240 cm, 300 cm, 400 cm |
| Ridge height | 565 cm, 625 cm, 725 cm |
| Roof pitch |
18° |
| Bay distance | 500 cm |
| Gable uprights | 3 gable uprights (per end) |
| Longest component | 1070 cm |
| Minimum tent length | 2000 cm |
| Maximum tent length | No limit |
| Main profile | 220 mm x 100 mm x 3 mm, 220 mm x 100 mm x 4 mm |
| Eave / corner connection | Slide connection with ridge strut, Twin-pin connection with corner and ridge strut |
| Max. allowed wind speed to DIN | 100 km/h |
| Wind Load | 0.5 kN/m2 |
| Extension / lean-to options | Extension (max. span 400 cm, located anywhere, both sides, any length), Extension (max. span 400 cm, located anywhere, both sides, any length) 1/2 octagonal at gable end |
| Flooring options | Woodenfloor with timber or steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards Compactfloor, Woodenfloor with timber and steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards |
| Cover | R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2 |
| Special design | Spars with site joints permit the construction of a 15 m tent with the same frame components By using compactfloor anchoring can be omitted, Portal beams can be used in place of cross struts |

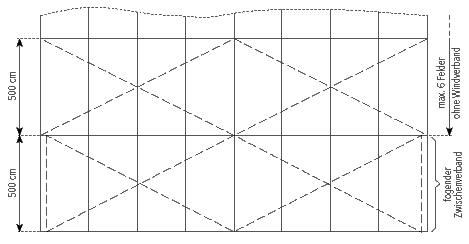

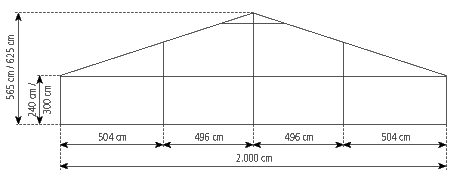

Tent top and side view image
