Big Tent 16M
Range
Big Tents

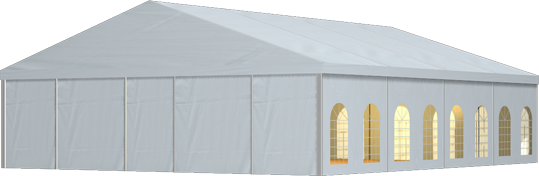

Tent image
Technical data
| Clear-span width | 1600 cm |
| Side height | 400 cm |
| Ridge height | 660 cm |
| Roof pitch |
18° |
| Bay distance | 500 cm |
| Gable uprights | 4 gable uprights (per end) |
| Longest component | 850 cm |
| Minimum tent length | 1500 cm |
| Maximum tent length | No limit |
| Eave / corner connection | Twin-pin connection with corner and ridge strut |
| Max. allowed wind speed to DIN | 100 km/h |
| Wind Load | 0.5 kN/m2 |
| Extension / lean-to options | none |
| Flooring options | Woodenfloor with timber and steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards |
| Cover | R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2 |
| Special design | Portal beams can be used in place of cross struts |

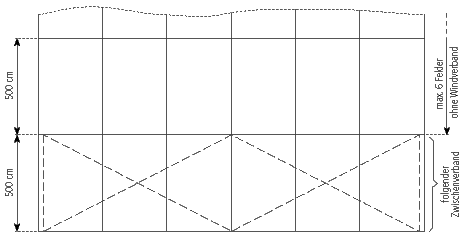

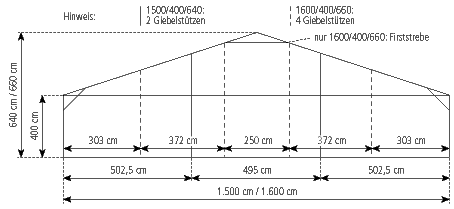

Tent top and side view image
