Big Tent 15M HP
Range
Big Tents

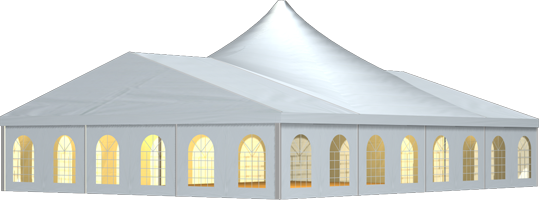

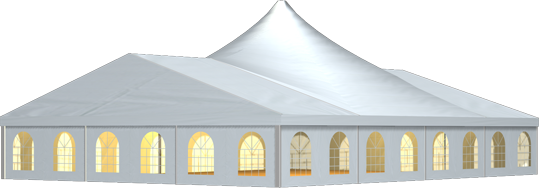

Tent image
Technical data
| Clear-span width | 1500 cm |
| Side height | 240 cm, 300 cm |
| Ridge height | 480 cm, 540 cm |
| Highest point | 811 cm, 868 cm |
| Roof pitch |
18° |
| Bay distance | 500 cm |
| Gable uprights | 2 gable uprights (per end) |
| Longest component | 800 cm |
| Minimum tent length | 3000 cm |
| Maximum tent length | No limit |
| Main profile | 220 mm x 100 mm x 3 mm |
| Eave / corner connection | Slide connection |
| Max. allowed wind speed to DIN | 100 km/h |
| Wind Load | 0.5 kN/m2 |
| Extension / lean-to options | Extension (max. span 400 cm, located anywhere, both sides, any length) 1/2 octagonal at gable end |
| Flooring options | Woodenfloor with timber or steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards Compactfloor |
| Cover | R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2 |
| Special design | Portal beams can be used in place of cross struts By using compactfloor anchoring can be omitted |

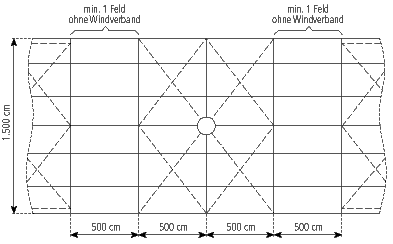

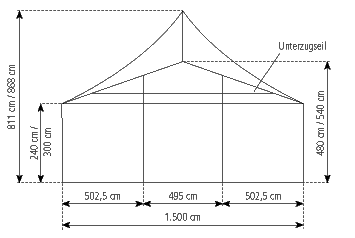

Tent top and side view image
